Civil Engineering GATE 2025 Set-2 Questions with Answer

Ques 40 Geotechnical Engineering

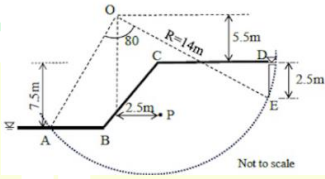

The bank of a canal has the profile shown in the figure. The material is a homogeneous clay with a bulk unit weight of 20 kN/m³, undrained cohesion of 30 kPa and it is fully saturated (φ_u=0). For the trial slip circle shown, the area ABCDEA is 150 m² and the centroid is at P. A tension crack (DE) of 2.5 m deep was also observed. Assume unit weight of water is 9.81 kN/m³ and consider 1 m run of the bank for the analysis.
Considering the canal is empty and tension crack is completely filled with water, the factor of safety against slope failure of the bank is ______ (round off to two decimal places).

Ques 41 Geotechnical Engineering

A designer used plate load test to obtain the value of the bearing capacity factor N_γ. A circular plate of 1 m diameter was placed on the surface of a dry sand layer extending very deep beneath the ground. The unit weight of the sand is 16.66 kN/m³. The plate is loaded to failure at a pressure of 1500 kPa.
Considering Terzaghi's bearing capacity theory, the bearing capacity factor N_γ is ______ (round off to the nearest integer).

Ques 42 Geotechnical Engineering

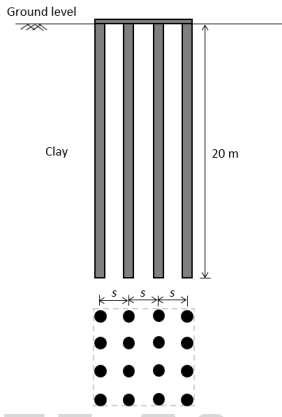

A 4×4 group pile, with each pile 20 m long and 500 mm in diameter, is installed in a square pattern in a clayey soil, as shown in the figure. The average unconfined compressive strength of the soil is 100 kN/m², and the adhesion factor is 0.8. Neglect the bearing at the tip of the piles. For a group efficiency factor of 1.0, the centre to centre spacing (s) of the piles (in m) would be ______ (round off to two decimal places).

Ques 43 Project Management

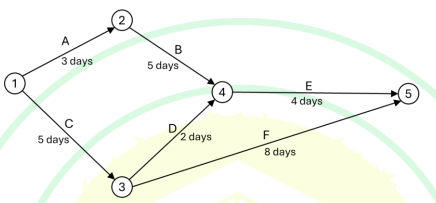

The figure shows a network diagram for a construction project. The activities A, B, C, D, E, and F are represented by arrows and their durations are in the figure.
The total float available for the activity E in day(s) is equal to ______ (round off to the nearest integer).

Ques 44 Strength of Materials

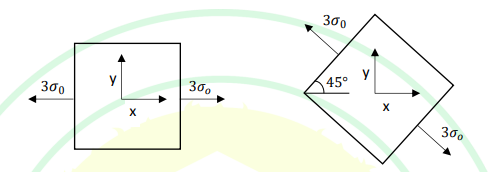

Let the state of stress at a point in a body be the difference of two plane states of stress shown in the figure. Consider all the possible planes perpendicular to the x-y plane and passing through that point. The magnitude of the maximum compressive stress on any such plane is kσ₀, where k is equal to ______ (round off to one decimal place).

Ques 45 Structural Engineering

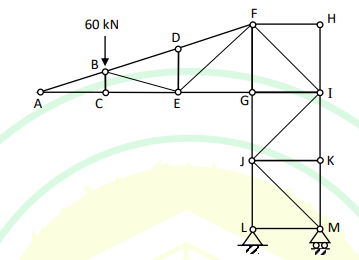

Consider the pin-jointed truss shown in the figure. Influence line is drawn for the axial force in the member G-I, when a unit load travels on the bottom chord of the truss. Identify the CORRECT influence line from the following options:
Note: Positive value corresponds to tension and negative value corresponds to compression in the member.

A

B

C

D

Ques 46 Structural Engineering

The design shear strength of a reinforced concrete rectangular beam with a width of 250 mm and an effective depth of 500 mm, is 0.3 MPa. The torsional moment capacity of the section (in kN.m) under pure torsion, as per IS 456:2000, is ______ (round off to one decimal place).

Ques 47 Structural Engineering

A circular tube of thickness 10 mm and diameter 250 mm is welded to a flat plate using 5 mm fillet weld along the circumference. Assume Fe410 steel and shop welding.
As per IS 800:2007, the torque that can be resisted by the weld (in kN.m) is ______ (round off to one decimal place).

Ques 48 Structural Engineering

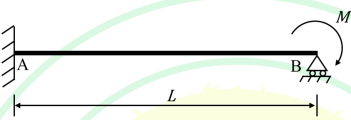

The figure shows a propped cantilever with uniform flexural rigidity EI (in N.m²) and subjected to a moment M (in N.m). Consider forces and displacements in the upward direction as positive.
Find the upward reaction at the propped support B (in N) when this support settles by (-Δ) given in metres.

Ques 49 Structural Engineering

Consider a reinforced concrete beam section of 350 mm width and 600 mm depth. The beam is reinforced with the tension steel of 800 mm² area at an effective cover of 40 mm. Consider M20 concrete and Fe415 steel. Let the stress block considered for concrete in IS 456:2000 be replaced by an equivalent rectangular stress block, with no change in (a) the area of the stress block, (b) the design strength of concrete (at the strain of 0.0035), and (c) the location of neutral axis at flexural collapse. The ultimate moment of resistance of the beam (in kN.m) is ______ (round off to the nearest integer).

Ques 50 Structural Engineering

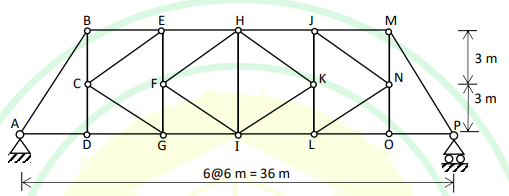

In the pin-jointed truss shown in the figure, the members that carry zero force are identified. Which of the following options is/are zero-force members?

Ques 51 Structural Engineering

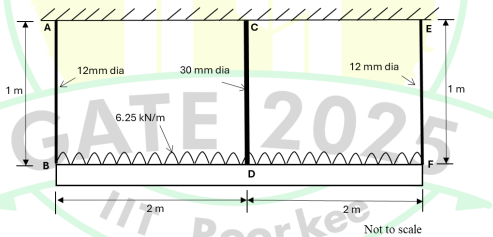

A steel beam supported by three parallel pin-jointed steel rods is shown in the figure. The moment of inertia of the beam is 8×10⁷ mm⁴. Take modulus of elasticity of steel as 210 GPa. The beam is subjected to uniformly distributed load of 6.25 kN/m including its self-weight.
The axial force (in kN) in the centre rod CD is ______ (round off to one decimal place).

Ques 52 Structural Engineering

A reinforced concrete beam has a support section with width of 300 mm and effective depth of 500 mm. The support section is reinforced with 3 bars of 20 mm diameter at the tension side. Two-legged vertical stirrups of 10 mm diameter and Fe415 steel at a spacing of 100 mm are provided as shear reinforcement. Assume that there is no possibility of diagonal compression failure at the section.
As per IS 456:2000, the maximum shear resisted by the vertical stirrups (in kN), as per limit state design, is ______ (round off to one decimal place).
