Civil Engineering GATE 2018 Set-2 Questions with Answer

Ques 1 Civil

“His face _______ with joy when the solution of the puzzle was _______ to him.”
The words that best fill the blanks in the above sentence are

Ques 2 Civil

“Although it does contain some pioneering ideas, one would hardly characterize the work as _______.”
The word that best fills the blank in the above sentence is

Ques 3 Civil

Ques 4 Civil

A three-member committee has to be formed from a group of 9 people. How many such distinct committees can be formed?

Ques 5 Civil

For non-negative integers, a, b, c, what would be the value of a + b + c if log a + log b + log c = 0?

Ques 6 Civil

In manufacturing industries, loss is usually taken to be proportional to the square of the deviation from a target. If the loss is Rs. 4900 for a deviation of 7 units, what would be the loss in Rupees for a deviation of 4 units from the target?

Ques 7 Civil

A faulty wall clock is known to gain 15 minutes every 24 hours. It is synchronized to the correct time at 9 AM on 11th July. What will be the correct time to the nearest minute when the clock shows 2 PM on 15th July of the same year?

Ques 8 Civil

The annual average rainfall in a tropical city is 1000 mm. On a particular rainy day (24-hour period), the cumulative rainfall experienced by the city is shown in the graph. Over the 24-hour period, 50% of the rainfall falling on a rooftop, which had an obstruction-free area of 50 m², was harvested into a tank. What is the total volume of water collected in the tank in liters?

Ques 9 Civil

Given that, log P / (y - z) = log Q / (z - x) = log R / (x - y) = 10 for x ≠ y ≠ z, what is the value of the product PQR?

Ques 10 Civil

Each of the letters in the figure below represents a unique integer from 1 to 9. The letters are positioned in the figure such that each of (A + B + C), (C + D + E), (E + F + G) and (G + H + K) is equal to 13. Which integer does E represent?

Ques 11 Civil

The solution of the equation x (dy/dx) + y = 0 passing through the point (1, 1) is

Ques 12 Civil

The graph of a function f(x) is shown in the figure.

Ques 13 Civil

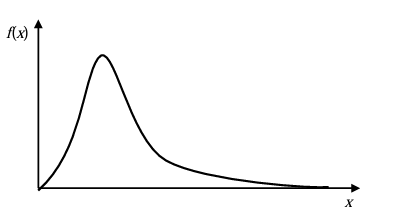

A probability distribution with right skew is shown in the figure.
