Ques 14 Civil

All the members of the planar truss (see figure), have the same properties in terms of area of cross-section (A) and modulus of elasticity (E).

For the loads shown on the truss, the statement that correctly represents the nature of forces in the members of the truss is:

There are 3 members in tension, and 2 members in compression

There are 2 members in tension, 2 members in compression, and 1 zero-force member

There are 2 members in tension, 1 member in compression, and 2 zero-force members

There are 2 members in tension, and 3 zero-force members

Ques 15 Civil

The setting time of cement is determined using

Le Chatelier apparatus

Briquette testing apparatus

Vicat apparatus

Casagrande's apparatus

Ques 16 Civil

A structural member subjected to compression, has both translation and rotation restrained at one end, while only translation is restrained at the other end. As per IS 456: 2000, the effective length factor recommended for design is

0.50

0.65

0.70

0.80

Ques 17 Civil

A vertical load of 10 kN acts on a hinge located at a distance of L/4 from the roller support Q of a beam of length L (see figure).

The vertical reaction at support Q is

0.0 kN

2.5 kN

7.5 kN

10.0 kN

Ques 18 Civil

A flownet below a dam consists of 24 equipotential drops and 7 flow channels. The difference between the upstream and downstream water levels is 6 m. The length of the flow line adjacent to the toe of the dam at exit is 1 m. The specific gravity and void ratio of the soil below the dam are 2.70 and 0.70, respectively. The factor of safety against piping is

1.67

2.5

3.4

Ques 19 Civil

The contact pressure and settlement distribution for a footing are shown in the figure.

The figure corresponds to a

rigid footing on granular soil

flexible footing on granular soil

flexible footing on saturated clay

rigid footing on cohesive soil

Ques 20 Civil

Which one of the following statements is NOT correct?

When the water content of soil lies between its liquid limit and plastic limit, the soil is said to be in plastic state.

Boussinesq's theory is used for the analysis of stratified soil.

The inclination of stable slope in cohesive soil can be greater than its angle of internal friction.

For saturated dense fine sand, after applying overburden correction, if the Standard Penetration Test value exceeds 15, dilatancy correction is to be applied.

Ques 21 Civil

The clay mineral, whose structural units are held together by potassium bond is

Halloysite

Illite

Kaolinite

Smectite

Ques 22 Civil

Dupuit's assumptions are valid for

artesian aquifer

confined aquifer

leaky aquifer

unconfined aquifer

Ques 23 Civil

For a given discharge in an open channel, there are two depths which have the same specific energy. These two depths are known as

alternate depths

critical depths

normal depths

sequent depths

Ques 24 Civil

As per IS 10500:2012, for drinking water in the absence of alternate source of water, the permissible limits for chloride and sulphate, in mg/L, respectively are

250 and 200

1000 and 400

200 and 250

500 and 1000

Ques 25 Civil

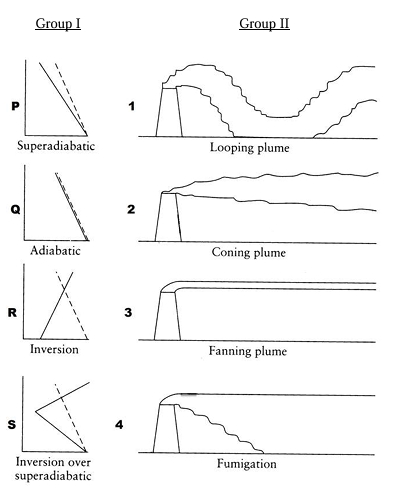

In the figures, Group I represents the atmospheric temperature profiles (P, Q, R and S) and Group II represents dispersion of pollutants from a smoke stack (1, 2, 3 and 4). In the figures of Group I, the dashed line represents the dry adiabatic lapse rate, whereas the horizontal axis represents temperature and the vertical axis represents the altitude.

The correct match is

P-1, Q-2, R-3, S-4

P-1, Q-2, R-4, S-3

P-1, Q-4, R-3, S-2

P-3, Q-1, R-2, S-4

Ques 26 Civil

Peak Hour Factor (PHF) is used to represent the proportion of peak sub-hourly traffic flow within the peak hour. If 15-minute sub-hours are considered, the theoretically possible range of PHF will be

0 to 1.0

0.25 to 0.75

0.25 to 1.0

0.5 to 1.0
