Civil Engineering GATE 2017 Set-1 Questions with Answer

Ques 1 Civil

_______ with someone else's email account is now a very serious offence.

Involving

Assisting

Tampering

Incubating

Ques 2 Civil

Consider the following sentences:
All benches are beds.
No bed is a bulb.
Some bulbs are lamps.
Which of the following can be inferred?

Only i

Only ii

Both i and ii

Neither i nor ii

Ques 3 Civil

If the radius of a right circular cone is increased by 50%, its volume increases by

75%

100%

125%

237.5%

Ques 4 Civil

The following sequence of numbers is arranged in increasing order: 1, x, x, x, y, y, 9, 16, 18. Given that the mean and median are equal, and are also equal to twice the mode, the value of y is

Ques 5 Civil

The old concert hall was demolished because of fears that the foundation would be affected by the construction of the new metro line in the area. Modern technology for underground metro construction tried to mitigate the impact of pressurized air pockets created by the excavation of large amounts of soil. But even with these safeguards, it was feared that the soil below the concert hall would not be stable. From this, one can infer that

the foundations of old buildings create pressurized air pockets underground, which are difficult to handle during metro construction.

metro construction has to be done carefully considering its impact on the foundations of existing buildings.

old buildings in an area form an impossible hurdle to metro construction in that area.

pressurized air can be used to excavate large amounts of soil from underground areas.

Ques 6 Civil

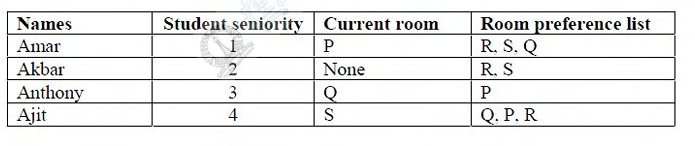

Students applying for hostel rooms are allotted rooms in order of seniority. Students already staying in a room will move if they get a room in their preferred list. Preferences of lower ranked applicants are ignored during allocation. Given the data below, which room will Ajit stay in?

Ques 7 Civil

The last digit of (2171)⁷ + (2172)⁹ + (2173)¹¹ + (2174)¹³ is

Ques 8 Civil

Two machines M1 and M2 are able to execute any of four jobs P, Q, R and S. The machines can perform one job on one object at a time. Jobs P, Q, R and S take 30 minutes, 20 minutes, 60 minutes and 15 minutes each respectively. There are 10 objects each requiring exactly 1 job. Job P is to be performed on 2 objects, Job Q on 3 objects, Job R on 1 object and Job S on 4 objects. What is the minimum time needed to complete all the jobs?

2 hours

2.5 hours

3 hours

3.5 hours

Ques 9 Civil

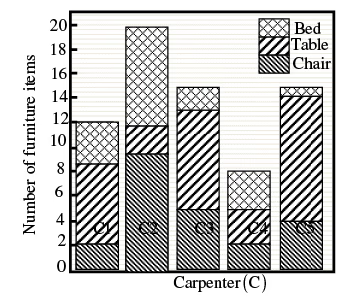

The bar graph below shows the output of five carpenters over one month, each of whom made different items of furniture: chairs, tables, and beds.

Consider the following statements.
i. The number of beds made by carpenter C2 is exactly the same as the number of tables made by carpenter C3.
ii. The total number of chairs made by all carpenters is less than the total number of tables.
Which one of the following is true?

Only i

Only ii

Both i and ii

Neither i nor ii

Ques 10 Civil

The matrix P is the inverse of a matrix Q. If I denotes the identity matrix, which one of the following options is correct?

PQ=I but QP≠I

QP=I but PQ≠I

PQ=I and QP=I

PQ−QP=I

Ques 11 Civil

The number of parameters in the univariate exponential and Gaussian distributions, respectively, are

2 and 2

1 and 2

2 and 1

1 and 1

Ques 12 Civil

Let x be a continuous variable defined over the interval (−∞,∞), and f(x)=e^{-x-e^-x} The integral g(x)=∫f(x)dx is equal to

e^{e^-x}

e^{-e^-x}

e^{-e^x}

e^−x

Ques 13 Civil

An elastic bar of length L. uniform cross sectional area A, coefficient of thermal expansion α and Young's modulus E is fixed at the two ends. The temperature of the bar is increased by T, resulting in an axial stress σ. Keeping all other parameters unchanged, if the length of the bar is doubled, the axial stress would be

2σ

0.5σ

0.25 ασ
