Civil Engineering Gate 2022 Set-1 Questions with Answer

Ques 1 GATE 2022 SET-1

You should _______ when to say _______.

Ques 2 GATE 2022 SET-1

Two straight lines pass through the origin (x₀, y₀) = (0, 0). One of them passes through the point (x₁, y₁) = (1, 3) and the other passes through the point (x₂, y₂) = (1, 2). What is the area 1 enclosed between the straight lines in the interval 2 on the x-axis?

Ques 3 GATE 2022 SET-1

If
p: q = 1: 2,
q: r = 4: 3,
r: s = 4: 5,
and u is 50% more than s, what is the ratio p: u?

Ques 4 GATE 2022 SET-1

Given the statements:
• P is the sister of Q.
• Q is the husband of R.
• R is the mother of S.
• T is the husband of P.
Based on the above information, T is _______ of S.

Ques 5 GATE 2022 SET-1

In the following diagram, the point R is the center of the circle. The lines PQ and ZV are tangential to the circle. The relation among the areas of the squares, PXWR, RUVZ and SPQT is

Ques 6 GATE 2022 SET-1

Healthy eating is a critical component of healthy aging. When should one start eating healthy? It turns out that it is never too early. For example, babies who start eating healthy in the first year are more likely to have better overall health as they get older.
Which one of the following is the CORRECT logical inference based on the information in the above passage?

Ques 7 GATE 2022 SET-1

P invested ₹5000 per month for 6 months of a year and Q invested ₹x per month for 8 months of the year in a partnership business. The profit is shared in proportion to the total investment made in that year.
If at the end of that investment year, Q receives 4/9 of the total profit, what is the value of x (in ₹)?

Ques 8 GATE 2022 SET-1

Ques 9 GATE 2022 SET-1

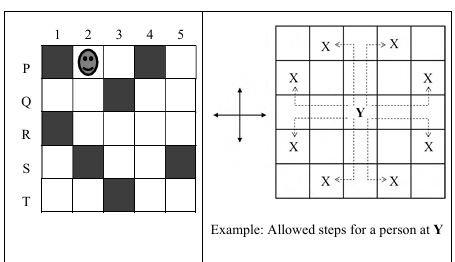

In the square grid shown on the left, a person standing at P2 position is required to move to P5 position.
The only movement allowed for a step involves, ""two moves along one direction followed by one move in a perpendicular direction"".
The permissible directions for movement are shown as dotted arrows in the right.
For example, a person at a given position Y can move only to the positions marked X on the right.
Without occupying any of the shaded squares at the end of each step, the minimum number of steps required to go from P2 to P5 is

Ques 10 GATE 2022 SET-1

A

B

C

D

Ques 11 GATE 2022 SET-1

Consider the following expression: z = sin(y + it) + cos(y - it) where z, y, and t are variables, and i = √-1 is a complex number. The partial differential equation derived from the above expression is

Ques 12 GATE 2022 SET-1

For the equation
d³y/dx³ + x(dy/dx)^3/2 + x²y = 0,
the correct description is

Ques 13 GATE 2022 SET-1

The hoop stress at a point on the surface of a thin cylindrical pressure vessel is computed to be 30.0 MPa. The value of maximum shear stress at this point is
