The cross-section of the reinforced concrete beam having an effective depth of 500 mm is shown in the figure (not drawn to the scale). The grades of concrete and steel used are M35 and Fe550, respectively. The area of tension reinforcement is 400 mm². It is given that corresponding to 0.2% proof stress, the material safety factor is 1.15 and the yield strain of Fe550 steel is 0.0044. As per IS 456:2000, the limiting depth (in mm, round off to the nearest integer) of the neutral axis measured from the extreme compression fiber, is _______.

Ques 54 Civil

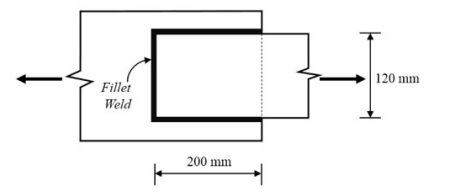

Two steel plates are lap jointed in a workshop using 6 mm thick fillet weld as shown in the figure (not drawn to the scale). The ultimate strength of the weld is 410 MPa.

Ques 55 Civil

The design speed of a two-lane two-way road is 60 km/h and the longitudinal coefficient of friction is 0.36. The reaction time of a driver is 2.5 seconds. Consider acceleration due to gravity as 9.8 m/s². The intermediate sight distance (in m, round off to the nearest integer) required for the road is _______.

Ques 56 Civil

A footing of size 2 m × 2 m transferring a pressure of 200 kN/m², is placed at a depth of 1.5 m below the ground as shown in the figure (not drawn to the scale). The clay stratum is normally consolidated. The clay has specific gravity of 2.65 and compression index of 0.3. Considering 2:1 (vertical to horizontal) method of load distribution and γw = 10 kN/m³, the primary consolidation settlement (in mm, round off to two decimal places) of the clay stratum is _______.

Ques 57 Civil

A constant-head permeability test was conducted on a soil specimen under a hydraulic gradient of 2.5. The soil specimen has specific gravity of 2.65 and saturated water content of 20%. If the coefficient of permeability of the soil is 0.1 cm/s, the seepage velocity (in cm/s, round off to two decimal places) through the soil specimen is _______.

Ques 58 Civil

A 5 m high vertical wall has a saturated clay backfill. The saturated unit weight and cohesion of clay are 18 kN/m³ and 20 kPa, respectively. The angle of internal friction of clay is zero. In order to prevent development of tension zone, the height of the wall is required to be increased. Dry sand is used as backfill above the clay for the increased portion of the wall. The unit weight and angle of internal friction of sand are 16 kN/m³ and 30°, respectively. Assume that the back of the wall is smooth and top of the backfill is horizontal. To prevent the development of tension zone, the minimum height (in m, round off to one decimal place) by which the wall has to be raised, is _______.

Ques 59 Civil

A cast iron pipe of diameter 600 mm and length 400 m carries water from a tank and discharges freely into air at a point 4.5 m below the water surface in the tank. The friction factor of the pipe is 0.018. Consider acceleration due to gravity as 9.81 m/s². The velocity of the flow in pipe (in m/s, round off to two decimal places) is _______.

Ques 60 Civil

A hydraulic jump occurs in a triangular (V-shaped) channel with side slopes 1:1 (vertical to horizontal). The sequent depths are 0.5 m and 1.5 m. The flow rate (in m³/s, round off to two decimal places) in the channel is _______.

Ques 61 Civil

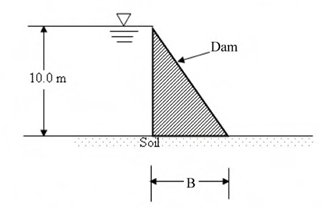

A concrete dam holds 10 m of static water as shown in the figure (not drawn to the scale). The uplift is assumed to vary linearly from full hydrostatic head at the heel, to zero at the toe of dam. The coefficient of friction between the dam and foundation soil is 0.45. Specific weights of concrete and water are 24 kN/m³ and 9.81 kN/m³, respectively.

Ques 62 Civil

The ion product of water (pK_w) is 14. If a rain water sample has a pH of 5.6, the concentration of OH_w in the sample (in 10^-9 mol/litre, round off to one decimal place), is _______.

Ques 63 Civil

A waste to energy plant burns dry solid waste of composition: Carbon = 35%, Oxygen = 26%, Hydrogen = 10%, Sulphur = 6%, Nitrogen = 3%, and Inerts = 20%. Burning rate is 1000 tonnes/d. Oxygen in air by weight is 23%. Assume complete conversion of Carbon to CO₂, Hydrogen to H₂O, Sulphur to SO₂ and Nitrogen to NO₂.
Given Atomic weights: H = 1, C = 12, N = 14, O = 16, S = 32.
The stoichiometric (theoretical) amount of air (in tonnes/d, round off to the nearest integer) required for complete burning of this waste, is _______.

Ques 64 Civil

A sample of water contains an organic compound C₈H₁₆O₈ at a concentration of 10^-3 mol/litre. Given that the atomic weight of C = 12 g/mol, H = 1 g/mol and O = 16 g/mol, the theoretical oxygen demand of water (in g of O₂ per litre, round off to two decimal places), is _______.

Ques 65 Civil

A theodolite is set up at station A. The RL of instrument axis is 212.250 m. The angle of elevation to the top of a 4 m long staff, held vertical at station B, is 7°. The horizontal distance between stations A and B is 400 m. Neglecting the errors due to curvature of earth and refraction, the RL (in m, round off to three decimal places) of station B is _______.
