Civil Engineering GATE 2015 Set-1 Questions with Answer

Ques 53 Structural Engineering

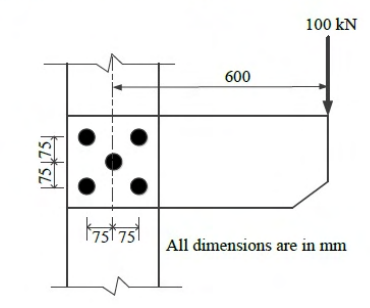

A bracket plate connected to a column flange transmits a load of 100 kN as shown in the following figure. The maximum force for which the bolts should be designed is _______ kN.

Ques 54 Structural Engineering

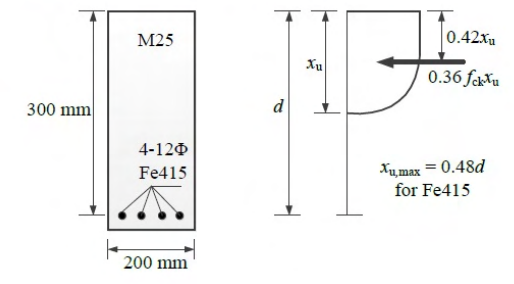

Consider the singly reinforced beam section given below (left figure). The stress block parameters for the cross-section from IS:456-2000 are also given below (right figure). The moment of resistance for the given section by the limit state method is _______ kN-m.

Ques 55 Structural Engineering

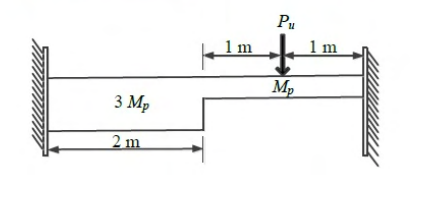

For formation of collapse mechanism in the following figure, the minimum value of P_u is cM_p/L. M_p and 3M_p denote the plastic moment capacities of beam sections as shown in this figure. The value of c is _______.

Ques 56 Structural Engineering

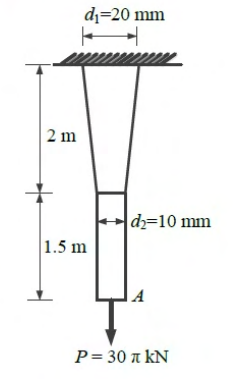

A tapered circular rod of diameter varying from 20 mm to 10 mm is connected to another uniform circular rod of diameter 10 mm as shown in the following figure. Both bars are made of same material with the modulus of elasticity, E = 2 x 10⁵ MPa. When subjected to a load P = 30π kN, the deflection at point A is _______ mm.

Ques 57 Structural Engineering

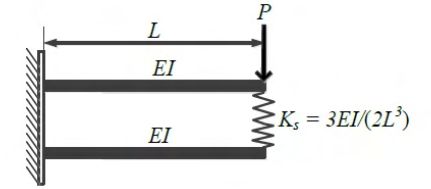

Two beams are connected by a linear spring as shown in the following figure. For a load P as shown in the figure, the percentage of the applied load P carried by the spring is _______.

Ques 58 Structural Engineering

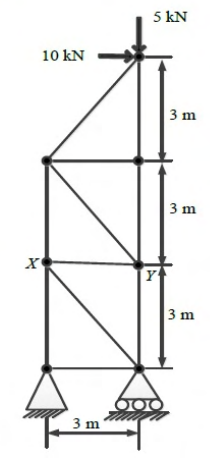

For the 2D truss with the applied loads shown below, the strain energy in the member XY is _______ kN-m. For member XY, assume AE = 30 kN where A is cross-section area and E is the modulus of elasticity.

Ques 59 Transportation Engineering

The penetration value of a bitumen sample tested at 25°C is 80. When this sample is heated to 60°C and tested again, the needle of the penetration test apparatus penetrates the bitumen sample by d mm. The value of d CANNOT be less than _______ mm.

Ques 60 Transportation Engineering

Which of the following statements CANNOT be used to describe free flow speed (u_f) of a traffic stream?

Ques 61 Transportation Engineering

The acceleration-time relationship for a vehicle subjected to non-uniform acceleration is,
dv/dt = (α - βv₀)e^-βt
where, v is the speed in m/s, t is the time in s, α and β are parameters, and v₀ is the initial speed in m/s. If the accelerating behavior of a vehicle, whose driver intends to overtake a slow moving vehicle ahead, is described as,
dv/dt = (α - βv)
Considering α = 2 m/s², β = 0.05 s^-1, and dv/dt = 1.3 m/s² at t = 3 s, the distance (in m) travelled by the vehicle in 35 s is _______.

Ques 62 Transportation Engineering

On a circular curve, the rate of superelevation is e. While negotiating the curve a vehicle comes to a stop. It is seen that the stopped vehicle does not slide inwards (in the radial direction). The coefficient of side friction is f. Which of the following is true:

Ques 63 Transportation Engineering

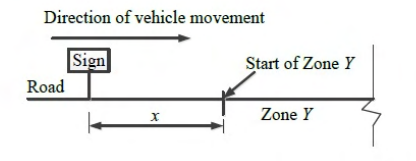

A sign is required to be put up asking drivers to slow down to 30 km/h before entering Zone Y (see figure). On this road, vehicles require 174 m to slow down to 30 km/h (the distance of 174 m includes the distance travelled during the perception-reaction time of drivers). The sign can be read by 6/6 vision drivers from a distance of 48 m. The sign is placed at a distance of x m from the start of Zone Y so that even a 6/9 vision driver can slow down to 30 km/h before entering the zone. The minimum value of x is _______ m.
