Electrical Engineering GATE 2016 Set-1 Questions with Answer

Ques 40 General Aptitude

Nobody knows how the Indian cricket team is going to cope with the difficult and seamer-friendly wickets in Australia.
Choose the option which is closest in meaning to the underlined phrase in the above sentence.

Ques 41 General Aptitude

Find the odd one in the following group of words.
mock, deride, praise, jeer

Ques 42 General Aptitude

Pick the odd one from the following options.

Ques 43 General Aptitude

In a quadratic function, the value of the product of the roots (α, β) is 4. Find the value of
(αⁿ + βⁿ) / (α^-n + β^-n)

Ques 44 General Aptitude

Among 150 faculty members in an institute, 55 are connected with each other through Facebook® and 85 are connected through WhatsApp®. 30 faculty members do not have Facebook® or WhatsApp® accounts. The number of faculty members connected only through Facebook® accounts is

Ques 45 General Aptitude

Computers were invented for performing only high-end useful computations. However, it is no understatement that they have taken over our world today. The internet, for example, is ubiquitous. Many believe that the internet itself is an unintended consequence of the original invention. With the advent of mobile computing on our phones, a whole new dimension is now enabled. One is left wondering if all these developments are good or, more importantly, required.
Which of the statement(s) below is/are logically valid and can be inferred from the above paragraph?
(i) The author believes that computers are not good for us.
(ii) Mobile computers and the internet are both intended inventions

Ques 46 General Aptitude

All hill-stations have a lake. Ooty has two lakes.
Which of the statement(s) below is/are logically valid and can be inferred from the above sentences?
(i) Ooty is not a hill-station.
(ii) No hill-station can have more than one lake.

Ques 47 General Aptitude

In a 2x4 rectangle grid shown below, each cell is a rectangle. How many rectangles can be observed in the grid?

Ques 48 General Aptitude

Ques 49 Power Electronics

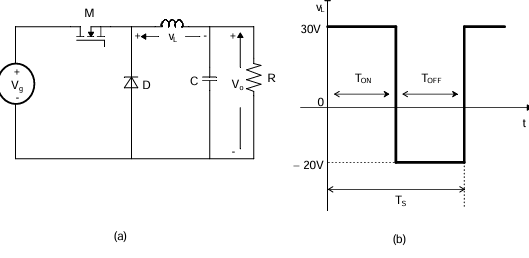

A buck converter, as shown in Figure (a) below, is working in steady state. The output voltage and the inductor current can be assumed to be ripple free. Figure (b) shows the inductor voltage V_L during a complete switching interval. Assuming all devices are ideal, the duty cycle of the buck converter is ________.

Ques 50 Power Electronics

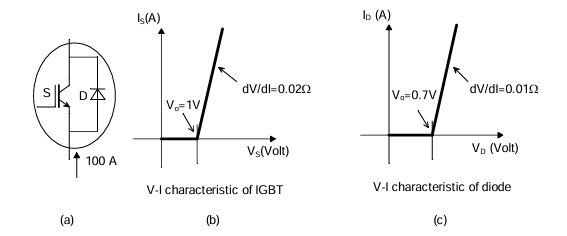

A steady dc current of 100 A is flowing through a power module (S, D) as shown in Figure (a). The V-I characteristics of the IGBT (S) and the diode (D) are shown in Figures (b) and (c), respectively. The conduction power loss in the power module (S, D), in watts, is ________.

Ques 51 Power Electronics

A single-phase thyristor-bridge rectifier is fed from a 230 V, 50 Hz, single-phase AC mains. If it is delivering a constant DC current of 10 A, at firing angle of 30°, then value of the power factor at AC mains is

Ques 52 Power Electronics

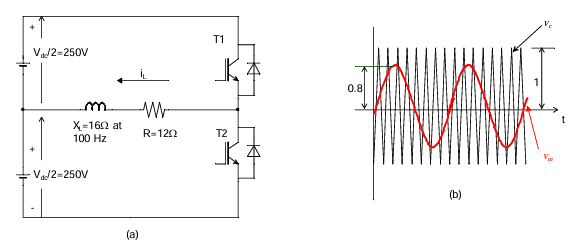

The switches T1 and T2 in Figure (a) are switched in a complementary fashion with sinusoidal pulse width modulation technique. The modulating voltage v_m(t) = 0.8sin(200πt) V and the triangular carrier voltage (v_c) are as shown in Figure (b). The carrier frequency is 5 kHz. The peak value of the 100 Hz component of the load current (i_L), in ampere, is ________.
