Electrical Engineering GATE 2020 Questions with Answer

Ques 40 General Aptitude

People were prohibited ________ their vehicles near the entrance of the main administrative building.

Ques 41 General Aptitude

Select the word that fits the analogy:
Do: Undo:: Trust: ______

Ques 42 General Aptitude

Stock markets ________ at the news of the coup.

Ques 43 General Aptitude

If P, Q, R, S are four individuals, how many teams of size exceeding one can be formed, with Q as a member?

Ques 44 General Aptitude

Non-performing Assets (NPAs) of a bank in India is defined as an asset, which remains unpaid by a borrower for a certain period of time in terms of interest, principal, or both. Reserve Bank of India (RBI) has changed the definition of NPA thrice during 1993-2004, in terms of the holding period of loans. The holding period was reduced by one quarter each time. In 1993, the holding period was four quarters (360 days). Based on the above paragraph, the holding period of loans in 2004 after the third revision was ________ days.

Ques 45 General Aptitude

Select the next element of the series: Z, WV, RQP, ________

Ques 46 General Aptitude

In four-digit integer numbers from 1001 to 9999, the digit group "37" (in the same sequence) appears ________ times.

Ques 47 General Aptitude

Given a semicircle with O as the centre, as shown in the figure, the ratio AC + CB / AB where AC, CB, and AB are chords.

Ques 48 General Aptitude

The revenue and expenditure of four different companies P, Q R and S in 2015 are shown in the figure. If the revenue of company Q in 2015 was 20% more than that in 2014, and company Q had earned a profit of 10% on expenditure in 2014, then its expenditure (in million rupees) in 2014 was

Ques 49 Power Electronics

A single-phase, full-bridge diode rectifier fed from a 230 V, 50 Hz sinusoidal source supplies a series combination of finite resistance, R, and a very large inductance, L. The two most dominant frequency components in the source current are:

Ques 50 Power Electronics

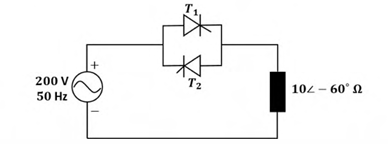

Thyristor T₁ is triggered at an angle α (in degree), and T₂ at angle 180°+α. in each cycle of the sinusoidal input voltage. Assume both thyristors to be ideal. To control the load power over the range 0 to 2 kW, the minimum range of variation in α is:

Ques 51 Power Electronics

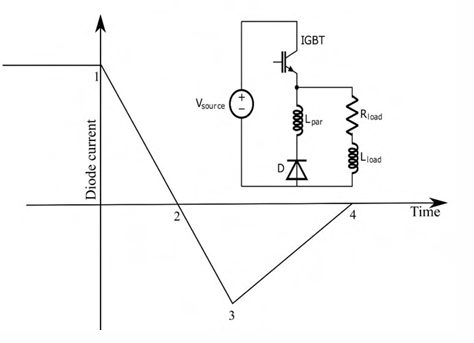

A double pulse measurement for an inductively loaded circuit controlled by the IGBT switch is carried out to evaluate the reverse recovery characteristics of the diode, D, represented approximately as a piecewise linear plot of current vs time at diode turn-off. L_par is a parasitic inductance due to the wiring of the circuit, and is in series with the diode. The point on the plot (indicate your choice by entering 1, 2, 3 or 4) at which the IGBT experiences the highest current stress is _______.

Ques 52 Power Electronics

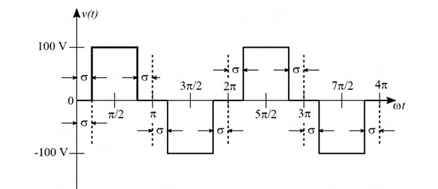

A single-phase inverter is fed from a 100 V de source and is controlled using a quasi-square wave modulation scheme to produce an output waveform, v(t), as shown. The angle o is adjusted to entirely eliminate the 3^rd harmonic component from the output voltage. Under this condition, for v(t), the magnitude of the 5th harmonic component as a percentage of the magnitude of the fundamental component is _______ (rounded off to 2 decimal places).
