Electrical Engineering GATE 2015 Set-1 Questions with Answer

Ques 14 Control Systems

The transfer function of a second order real system with a perfectly flat magnitude response of unity has a pole at (2-j3). List all the poles and zeroes.

Ques 15 Control Systems

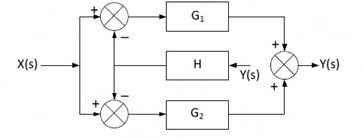

Find the transfer function Y(s)/X(s) of the system given below.

Ques 16 Control Systems

The open loop poles of a third order unity feedback system are at 0, -1, -2. Let the frequency corresponding to the point where the root locus of the system transits to unstable region be K. Now suppose we introduce a zero in the open loop transfer function at -3, while keeping all the earlier open loop poles intact. Which one of the following is TRUE about the point where the root locus of the modified system transits to unstable region?

Ques 17 Digital Electronics

In the 4x1 multiplexer, the output F is given by F = A⊕B. Find the required input 'I₃I₂I₁I₀'.

Ques 18 Digital Electronics

The figure shows a digital circuit constructed using negative edge triggered J-K flip flops. Assume a starting state of Q₂Q₁Q₀ = 000. This state Q₂Q₁Q₀ = 000 will repeat after ________ number of cycles of the clock CLK.

Ques 19 Digital Electronics

f(A,B,C,D) = ΠM(0,1,3,4,5,7,9,11,12,13,14,15) is a maxterm representation of a Boolean function f(A,B,C,D) where A is the MSB and D is the LSB. The equivalent minimized representation of this function is

Ques 20 Digital Electronics

An 8-bit, unipolar Successive Approximation Register type ADC is used to convert 3.5 V to digital equivalent output. The reference voltage is +5 V. The output of the ADC, at the end of 3rd clock pulse after the start of conversion, is

Ques 21 Electrical Machines

A separately excited DC generator has an armature resistance of 0.1Ω and negligible armature inductance. At rated field current and rated rotor speed, its open-circuit voltage is 200V. When this generator is operated at half the rated speed, with half the rated field current, an un-charged 1000μF capacitor is suddenly connected across the armature terminals. Assume that the speed remains unchanged during the transient. At what time (in microsecond) after the capacitor is connected will the voltage across it reach 25V?

Ques 22 Electrical Machines

The self inductance of the primary winding of a single phase, 50 Hz, transformer is 800 mH, and that of the secondary winding is 600 mH. The mutual inductance between these two windings is 480 mH. The secondary winding of this transformer is short circuited and the primary winding is connected to a 50 Hz, single phase, sinusoidal voltage source. The current flowing in both the windings is less than their respective rated currents. The resistance of both windings can be neglected. In this condition, what is the effective inductance (in mH) seen by the source?

Ques 23 Electrical Machines

The primary mmf is least affected by the secondary terminal conditions in a

Ques 24 Electrical Machines

A 3-phase 50 Hz square wave (6-step) VSI feeds a 3-phase, 4 pole induction motor. The VSI line voltage has a dominant 5^th harmonic component. If the operating slip of the motor with respect to fundamental component voltage is 0.04, the slip of the motor with respect to 5^th harmonic component of voltage is ________.

Ques 25 Electrical Machines

A separately excited DC motor runs at 1000 rpm on no load when its armature terminals are connected to a 200V DC source and the rated voltage is applied to the field winding. The armature resistance of this motor is 1 Ω. The no-load armature current is negligible. With the motor developing its full load torque, the armature voltage is set so that the rotor speed is 500 rpm. When the load torque is reduced to 50% of the full load value under the same armature voltage conditions, the speed rises to 520 rpm. Neglecting the rotational losses, the full load armature current (in Ampere) is ________.

Ques 26 Electrical Machines

A DC motor has the following specifications: 10 hp, 37.5 A, 230 V; flux/pole = 0.01 Wb, number of poles = 4, number of conductors = 666, number of parallel paths = 2. Armature resistance = 0.267 Ω. The armature reaction is negligible and rotational losses are 600 W. The motor operates from a 230 V DC supply. If the motor runs at 1000 rpm, the output torque produced (in Nm) is ________.
