Civil Engineering GATE 2023 Set-2 Questions with Answer

Ques 14 General Aptitude

There are 4 red, 5 green, and 6 blue balls inside a box. If N number of balls are picked simultaneously, what is the smallest value of N that guarantees there will be at least two balls of the same colour? One cannot see the colour of the balls until they are picked.

Ques 15 General Aptitude

Consider a circle with its centre at the origin (O), as shown. Two operations are allowed on the circle.
Operation 1: Scale independently along the x and y axes.
Operation 2: Rotation in any direction about the origin.
Which figure among the options can be achieved through a combination of these two operations on the given circle?

A

B

C

D

Ques 16 General Aptitude

Elvesland is a country that has peculiar beliefs and practices. They express almost all their emotions by gifting flowers. For instance, if anyone gifts a white flower to someone, then it is always taken to be a declaration of one’s love for that person. In a similar manner, the gifting of a yellow flower to someone often means that one is angry with that person.
Based only on the information provided above, which one of the following sets of statement(s) can be logically inferred with certainty?
(i) In Elvesland, one always declares one’s love by gifting a white flower.
(ii) In Elvesland, all emotions are declared by gifting flowers.
(iii) In Elvesland, sometimes one expresses one’s anger by gifting a flower that is not yellow.
(iv) In Elvesland, sometimes one expresses one’s love by gifting a white flower.

Ques 17 General Aptitude

Three husband-wife pairs are to be seated at a circular table that has six identical chairs. Seating arrangements are defined only by the relative position of the people. How many seating arrangements are possible such that every husband sits next to his wife?

Ques 18 General Aptitude

Based only on the following passage, which one of the options can be inferred with certainty?
When the congregation sang together, Apenyo would also join, though her little screams were not quite audible because of the group singing. But whenever there was a special number, trouble would begin; Apenyo would try singing along, much to the embarrassment of her mother. After two or three such mortifying Sunday evenings, the mother stopped going to church altogether until Apenyo became older and learnt to behave.
At home too, Apenyo never kept quiet; she hummed or made up silly songs to sing by herself, which annoyed her mother at times but most often made her become pensive. She was by now convinced that her daughter had inherited her love of singing from her father who had died unexpectedly away from home.
[Excerpt from These Hills Called Home by Temsula Ao]

Ques 19 General Aptitude

Consider a spherical globe rotating about an axis passing through its poles. There are three points P, Q, and R situated respectively on the equator, the north pole, and midway between the equator and the north pole in the northern hemisphere. Let P, Q, and R move with speeds v_P, v_Q, and v_R, respectively. Which one of the following options is CORRECT?

Ques 20 Geotechnical Engineering

A standard penetration test (SPT) was carried out at a location by using a manually operated hammer dropping system with 50% efficiency. The recorded SPT value at a particular depth is 28. If an automatic hammer dropping system with 70% efficiency is used at the same location, the recorded SPT value will be

Ques 21 Geotechnical Engineering

A vertical sheet pile wall is installed in an anisotropic soil having coefficient of horizontal permeability, k_H and coefficient of vertical permeability, k_v. In order to draw the flow net for the isotropic condition, the embedment depth of the wall should be scaled by a factor of

Ques 22 Geotechnical Engineering

The reason(s) of the nonuniform elastic settlement profile below a flexible footing, resting on a cohesionless soil while subjected to uniform loading, is/are:

Ques 23 Geotechnical Engineering

An unconfined compression strength test was conducted on a cohesive soil. The test specimen failed at an axial stress of 76 kPa. The undrained cohesion (in kPa, in integer) of the soil is

Ques 24 Hydrology

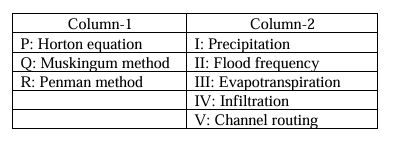

Which one of the following options provides the correct match of the terms listed in Column-1 and Column-2?

Ques 25 Irrigation Engineering

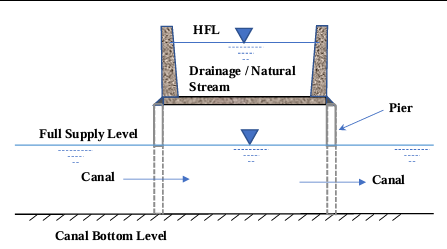

Identify the cross-drainage work in the figure.

Ques 26 Solid Mechanics

A circular solid shaft of span L=5 m is fixed at one end and free at the other end. A torque T=100 kN⋅m is applied at the free end. The shear modulus and polar moment of inertia of the section are denoted as G and J, respectively. The torsional rigidity GJ is 50,000 kN⋅m^2/rad. The following are reported for this shaft:
Statement i) The rotation at the free end is 0.01 rad
Statement ii) The torsional strain energy is 1.0 kN⋅m
With reference to the above statements, which of the following is true?
