Civil Engineering GATE 2019 Set-2 Questions with Answer

Ques 27 Civil

An anisotropic soil deposit has coefficient of permeability in vertical and horizontal directions as k_z and k_x, respectively. For constructing a flow net, the horizontal dimension of the problem's geometry is transformed by a multiplying factor of

Ques 28 Civil

The value of the function f(x) is given at n distinct values of x and its value is to be interpolated at the point x^* using all the n points. The estimate is obtained first by the Lagrange polynomial, denoted by I_L, and then by the Newton polynomial, denoted by I_N. Which one of the following statements is correct?

Ques 29 Civil

The speed-density relationship in a mid-block section of a highway follows the Greenshield's model. If the free flow speed is vf and the jam density is kj, the maximum flow observed on this section is

Ques 30 Civil

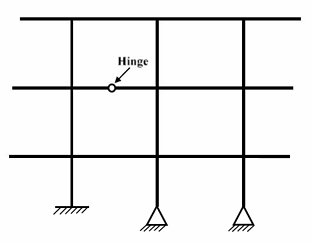

The degree of static indeterminacy of the plane frame as shown in the figure is _______.

Ques 31 Civil

The characteristic compressive strength of concrete required in a project is 25 MPa and the standard deviation in the observed compressive strength expected at site is 4 MPa. The average compressive strength of cubes tested at different water-cement (w/c) ratios using the same material as is used for the project is given in the table.

Ques 32 Civil

The data from a closed traverse survey PQRS (run in the clockwise direction) are given in the table.

Ques 33 Civil

A vehicle is moving on a road of grade +4% at a speed of 20 m/s. Consider the coefficient of rolling friction as 0.46 and acceleration due to gravity as 10 m/s². On applying brakes to reach a speed of 10 m/s, the required braking distance (in m, round off to the nearest integer) along the horizontal, is _______.

Ques 34 Civil

The command area of a canal grows only one crop, i.e., wheat. The base period of wheat is 120 days and its total water requirement, Δ, is 40 cm. If the canal discharge is 2 m³/s, the area, in hectares, rounded off to the nearest integer, which could be irrigated (neglecting all losses) is _______.

Ques 35 Civil

Construction of a new building founded on a clayey soil was completed in January 2010. In January 2014, the average consolidation settlement of the foundation in clay was recorded as 10 mm. The ultimate consolidation settlement was estimated in design as 40 mm. Considering double drainage to occur at the clayey soil site, the expected consolidation settlement in January 2019 (in mm, round off to the nearest integer) will be _______.

Ques 36 Civil

The probability density function of a continuous random variable distributed uniformly between x and y (for y > x) is

Ques 37 Civil

Consider the hemi-spherical tank of radius 13 m as shown in the figure (not drawn to scale). What is the volume of water (in m³) when the depth of water at the centre of the tank is 6 m?

Ques 38 Civil

An ordinary differential equation is given below.
(dy/dx)(x ln x) = y
The solution for the above equation is (Note: K denotes a constant in the options)

Ques 39 Civil

For a plane stress problem, the state of stress at a point P is represented by the stress element as shown in figure.
