Vibrations Mechanical previous year questions with answer
Ques 11 GATE 2016 SET-2
A single degree of freedom mass-spring-viscous damper system with mass m, spring constant k and viscous damping coefficient q is critically damped. The correct relation among m, k, and q is
Ques 12 GATE 2016 SET-2
The system shown in the figure consists of block A of mass 5 kg connected to a spring through a massless rope passing over pulley B of radius r and mass 20 kg. The spring constant k is 1500 N/m. If there is no slipping of the rope over the pulley, the natural frequency of the system is ________ rad/s.
10 is the correct answer.
Ques 13 GATE 2016 SET-1
A single degree of freedom spring mass system with viscous damping has a spring constant of 10 kN/m. The system is excited by a sinusoidal force of amplitude 100 N. If the damping factor (ratio) is 0.25, the amplitude of steady state oscillation at resonance is ________ mm.
20 is the correct answer.
Ques 14 GATE 2016 SET-1

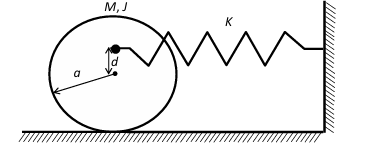

A solid disc with radius a is connected to a spring at a point d above the center of the disc. The other end of the spring is fixed to the vertical wall. The disc is free to roll without slipping on the ground. The mass of the disc is M and the spring constant is K. The polar moment of inertia for the disc about its centre is J = Ma2/2.
Ques 15 GATE 2015 SET-2
A single-degree-freedom spring-mass system is subjected to a sinusoidal force of 10 N amplitude and frequency ω along the axis of the spring. The stiffness of the spring is 150 N/m, damping factor is 0.2 and the undamped natural frequency is 10 rad/s. At steady state, the amplitude of vibration (in m) is approximately
Ques 16 GATE 2015 SET-2
In a spring-mass system, the mass is m and the spring constant is k. The critical damping coefficient of the system is 0.1 kg/s. In another spring-mass system, the mass is 2m and the spring constant is 8k. The critical damping coefficient (in kg/s) of this system is ________.
0.4 is the correct answer.
Ques 17 GATE 2015 SET-1

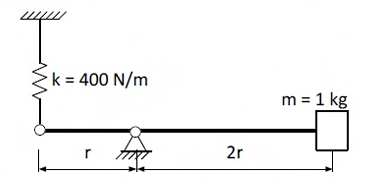

Considering massless rigid rod and small oscillations, the natural frequency (in rad/s) of vibration of the system shown in the figure is
Ques 18 GATE 2015 SET-1
A mobile phone has a small motor with an eccentric mass used for vibrator mode. The location of the eccentric mass on motor with respect to center of gravity (CG) of the mobile and the rest of the dimensions of the mobile phone are shown. The mobile is kept on a flat horizontal surface.
Ques 19 GATE 2015 SET-1
A precision instrument package (m=1 kg) needs to be mounted on a surface vibrating at 60 Hz. It is desired that only 5% of the base surface vibration amplitude be transmitted to the instrument. Assume that the isolation is designed with its natural frequency significantly lesser than 60 Hz, so that the effect of damping may be ignored. The stiffness (in N/m) of the required mounting pad is ________.
7100 is the correct answer.
Ques 20 GATE 2014 SET-3
Consider a single degree-of-freedom system with viscous damping excited by a harmonic force. At resonance, the phase angle (in degree) of the displacement with respect to the exciting force is
