Mechanical Engineering Gate 2014 Set-4 Questions with Answer
Ques 40 GATE 2014 Set-4
A thin gas cylinder with an internal radius of 100 mm is subject to an internal pressure of 10 MPa. The maximum permissible working stress is restricted to 100 MPa. The minimum cylinder wall thickness (in mm) for safe design must be ________.
Ques 41 GATE 2014 Set-4
For the truss shown in the figure, the forces F1 and F2 are 9 kN and 3 kN, respectively. The force (in kN) in the member QS is
Ques 42 GATE 2014 Set-4
It is desired to avoid interference in a pair of spur gears having a 20° pressure angle. With increase in gear speed ratio, the minimum number of teeth on the pinion
Ques 43 GATE 2014 Set-4

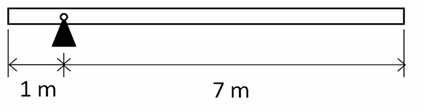

A uniform slender rod (8 m length and 3 kg mass) rotates in a vertical plane about a horizontal axis 1 m from its end as shown in the figure. The magnitude of the angular acceleration (in rad/s2) of the rod at the position shown is ________.
Ques 44 GATE 2014 Set-4
A bolt of major diameter 12 mm is required to clamp two steel plates. Cross sectional area of the threaded portion of the bolt is 84.3 mm2. The length of the threaded portion in grip is 30 mm, while the length of the unthreaded portion in grip is 8 mm. Young's modulus of material is 200 GPa. The effective stiffness (in MN/m) of the bolt in the clamped zone is ________.
Ques 45 GATE 2014 Set-4
A frame is subjected to a load P as shown in the figure. The frame has a constant flexural rigidity EI. The effect of axial load is neglected. The deflection at point A due to the applied load P is
Ques 46 GATE 2014 Set-4
A wardrobe (mass 100 kg, height 4 m, width 2 m, depth 1 m), symmetric about the Y-Y axis, stands on a rough level floor as shown in the figure. A force P is applied at mid-height on the wardrobe so as to tip it about point Q without slipping. What are the minimum values of the force (in newton) and the static coefficient of friction μ between the floor and the wardrobe, respectively?
Ques 47 GATE 2014 Set-4

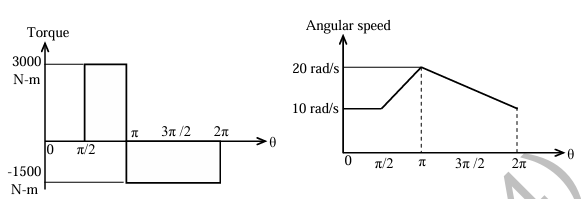

Torque and angular speed data over one cycle for a shaft carrying a flywheel are shown in the figures. The moment of inertia (in kg.m2) of the flywheel is ________.
Ques 48 GATE 2014 Set-4
A single degree of freedom system has a mass of 2 kg, stiffness 8 N/m and viscous damping ratio 0.02. The dynamic magnification factor at an excitation frequency of 1.5 rad/s is ________.
Ques 49 GATE 2014 Set-4
A ladder AB of length 5 m and weight (W) 600 N is resting against a wall. Assuming frictionless contact at the floor (B) and the wall (A), the magnitude of the force P (in newton) required to maintain equilibrium of the ladder is ________.
Ques 50 GATE 2014 Set-4
A closed system contains 10 kg of saturated liquid ammonia at 10°C. Heat addition required to convert the entire liquid into saturated vapour at a constant pressure is 16.2 MJ. If the entropy of the saturated liquid is 0.88 kJ/kg.K, the entropy (in kJ/kg.K) of saturated vapour is ________.
Ques 51 GATE 2014 Set-4
A plane wall has a thermal conductivity of 1.15 W/m.K. If the inner surface is at 1100°C and the outer surface is at 350°C, then the design thickness (in meter) of the wall to maintain a steady heat flux of 2500 W/m2 should be ________.
Ques 52 GATE 2014 Set-4
Consider the following statements regarding streamline(s):
(i) It is a continuous line such that the tangent at any point on it shows the velocity vector at that point
(ii) There is no flow across streamlines
(iii) dx/u = dy/v = dz/w is the differential equation of a streamline, where u, v and w are velocities in directions x, y and z, respectively
(iv) In an unsteady flow, the path of a particle is a streamline
Which one of the following combinations of the statements is true?
