Gate Yearwise

Textile Engineering Gate 2019 Questions with Answer

Ques 40 GATE 2019

Molecular weight of the repeat unit of poly (ethylene terephthalate) is __________.


(192.0 to 192.5) is the correct answer.

Ques 41 GATE 2019

Match the process steps in viscose fibre manufacture listed in Group I with the corresponding chemicals given in Group II. The correct option is

A

P-1, Q-3, R-2, S-1

B

P-4, Q-3, R-1, S-2

C

P-3, Q-4, R-1, S-2

D

P-2, Q-3, R-1, S-4


(b) is the correct answer.

Ques 42 GATE 2019

The correct combination of techniques to determine the crystallinity in fibres is

A

TGA and DSC

B

Birefringence and DSC

C

X-ray diffraction and Density measurement

D

Birefringence and X-ray diffraction


(d) is the correct answer.

Ques 43 GATE 2019

Determine the correctness or otherwise of the following Assertion [a] and Reason [r]
[a]: Kevlar fibre has high strength and high modulus.
[r]: It has high orientation and low crystallinity.

A

Both [a] and [r] are true and [r] is the correct reason for [a]

B

Both [a] and [r] are true but [r] is not the correct reason for [a]

C

Both [a] and [r] are false

D

[a] is true but [r] is false


(d) is the correct answer.

Ques 44 GATE 2019

In melt spinning, the diameter of monofilament at the spinneret exit is 0.3 mm and at the take-up point is 0.15 mm. Assuming that there is no change in density of filament, the spin-draw ratio is


(4) is the correct answer.

Ques 45 GATE 2019

The experimentally determined density of a fibre is 1.31 g/cc. If the density of the void free fibre is 1.35 g/cc, then the void volume fraction (%) of the fibre sample (rounded off to 2 decimal places) is


(2.60 to 3.00) is the correct answer.

Ques 46 GATE 2019

A 180 denier polyester multifilament yarn, a 60 Ne cotton yarn and a 50 Nm (metric count) polyester/wool yarn are twisted together. The resultant linear density (tex) of the 3-ply yarn, neglecting twist contraction, (rounded off to 2 decimal places) is


(49.50 to 50.00) is the correct answer.

Ques 47 GATE 2019

Among the following options, the thickest Classimat fault is

A

B3

B

D1

C

G

D

H2


(d) is the correct answer.

Ques 48 GATE 2019

Work factor of a perfectly elastic yarn is

A

0

B

0.5

C

1

D

2


(a) is the correct answer.

Ques 49 GATE 2019

If the moisture content of a fibre is 10%, its moisture regain (%) (rounded off to 2 decimal places) is ___________.


(11.00 to 11.20) is the correct answer.

Ques 50 GATE 2019

The 2.5% span length and uniformity ratio of a particular variety of cotton fibre are 30 mm and 45%, respectively. The 50% span length (mm) of the fibre (rounded off to 1 decimal place) is __________.


(13.0 to 14.0) is the correct answer.

Ques 51 GATE 2019

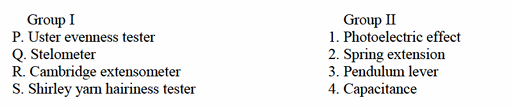

Match the instruments listed in Group I with the corresponding operating principles given in Group II. The correct option is

A

P-4, Q-3, R-1, S-2

B

P-4, Q-2, R-3, S-1

C

P-1, Q-3, R-2, S-4

D

P-4, Q-3, R-2, S-1


(d) is the correct answer.

Ques 52 GATE 2019

A sample of 150 cotton fibres is tested for maturity. The number of normal and thin-walled fibres are 105 and 30, respectively. The rest are dead fibres. The maturity ratio is


(1) is the correct answer.
