Mining Engineering > GATE 2026 > Trusses - Method of Joints

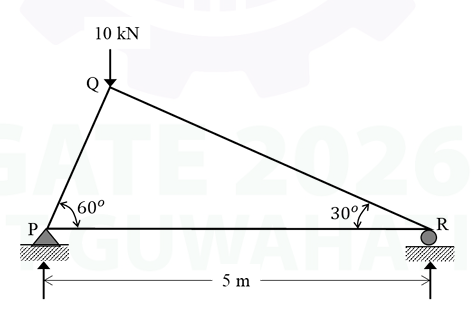

A truss PQR carries vertical load of 10 kN at Q as shown. P is a pinned support and R is a roller support, with PR = 5 m (horizontal), angle QPR = 60°, and angle QRP = 30°. The force in member PR, in kN, is _______________. (rounded off to two decimal places)
Correct : 4.33
