Mining Engineering > GATE 2024 > Blasting
In a development coal face, 12 holes are drilled and charged with explosive. Holes are initiated with electric delay detonators connected in series. The length of a detonator lead wire is 1.5 m. The length of the blasting cable is 120 m.

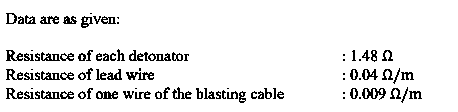

Data are as given:
The total resistance of the circuit in Ω, is __________. (round off up to 2 decimals)

Correct : 20.40
