Mining Engineering > GATE 2024 > Rock Mechanics

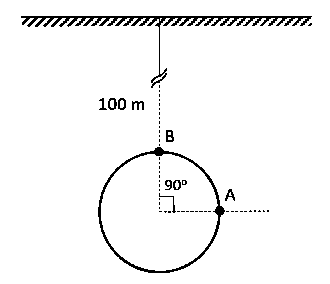

A circular tunnel is constructed at a depth of 100 m. The average unit weight of overburden rock is 27.0 kN/m3. If the tangential stress measured at point A located at the horizontal boundary of the tunnel as shown, is 5.0 MPa, the tangential stress at point B in MPa, is __________.(round off up to 2 decimals)

Correct : 2.00
