Mining Engineering > GATE 2022 > Rock Mechanics

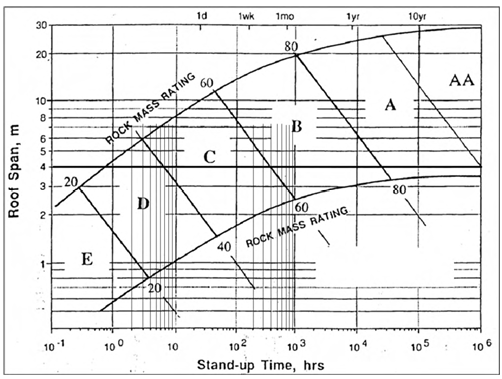

The modified Lauffer diagram as shown in the figure relates to roof span, RMR and stand-up time. In a metal mine, roof span of a drive is 4 m. If the RMR of the rock mass changes from 40 to 60, then the stand-up time increases by a factor of __________.(round off to two decimal places)
Correct : 50.00
Similar Questions
A Mohr-Coulomb envelop between shear stress, t and normal stress, σn of a sandstone rock is given as τ=7.5+0.84 σn ( unit of stresses is MPa ) A...
A circular tunnel is constructed at a depth of 100 m. The average unit weight of overburden rock is 27.0 kN/m3. If the tangential stress measured at point A loc...
A shear stress t acts tangentially to the upper surface of a block and causes a small deformation Δw as shown. The shear strain is calculated by
