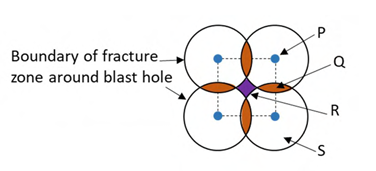

A square pattern of blasting is shown in the figure. For the case of simultaneous blast, identify the zone of no fragmentation P.
A
P
B
Q
C
R
D
S

Correct : c
