Metallurgical Engineering > GATE 2023 > Dislocations

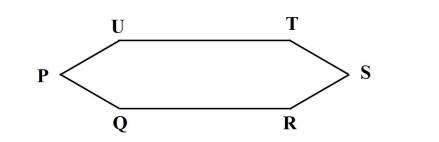

A dislocation loop PQRSTU is on the (111) plane of a cubic single crystal with 1/6 Burgers vector. The dislocation segments PU̅ and PQ̅ are parallel to and directions, respectively.
The correct statement(s) is/are _______.
A
Dislocation segment PQ is mixed in character.
B
Dislocation segment UT is screw in character.
C
Dislocation segment PU is mixed in character.
D
Dislocation segment QR is edge in character.

Correct : a,b,d
