Metallurgical Engineering > GATE 2022 > Heat Transfer

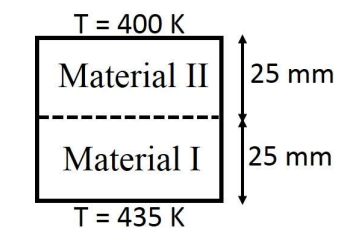

A rectangular block made of Material I and Material II of identical cross sections (as shown in the figure) has a temperature (T) of 435 K and 400 K at the bottom and top surfaces, respectively. Assuming purely steady state conductive heat transfer, the temperature at the interface is _______ K (round off to nearest integer).
(Given: The two parts of the block made of Material I and Material II have equal thickness of 25 mm each. The thermal conductivities of Material I and Material II are 50 W⋅m-1⋅K-1 and 200 W⋅m-1⋅K-1 respectively.)
(Given: The two parts of the block made of Material I and Material II have equal thickness of 25 mm each. The thermal conductivities of Material I and Material II are 50 W⋅m-1⋅K-1 and 200 W⋅m-1⋅K-1 respectively.)

Correct : 408
