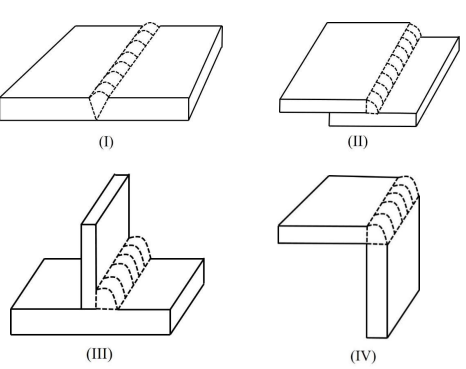

Which one of the following figures illustrates a lap joint with fillet weld?
A
I
B
II
C
III
D
IV

Correct : b
