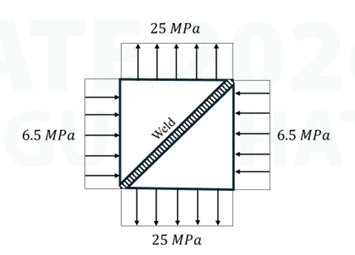

A welded square plate of 1 m × 1 m is subjected to biaxial stress of magnitude 6.5 MPa and 25 MPa, as shown in the figure below. The ratio of the normal stress acting in the perpendicular direction of the weld to the shear stress of the weld is ________ (rounded off to 2 decimal places).
Correct : 1.71
