Mechanical Engineering > GATE 2026 > Rankine Cycle

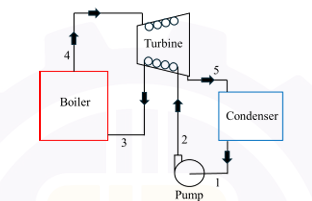

For an ideal regenerative Rankine cycle, as shown in the figure below, which one of the following options is the correct representation of temperature-entropy (T-s) diagram?
A
B
C
D
Correct : c
Similar Questions
Which one of the following statements regarding a Rankine cycle is FALSE?
In a steam power plant based on Rankine cycle, steam is initially expanded in a high-pressure turbine. The steam is then reheated in a reheater and finally expa...
An ideal reheat Rankine cycle operates between the pressure limits of 10 kPa and 8 MPa, with reheat being done at 4 MPa. The temperature of steam at the inlets...
