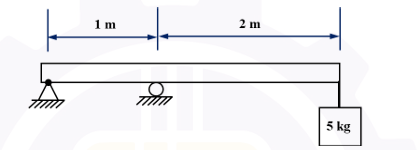

A 5 kg mass is suspended at the free end of an overhanging massless beam, having a pin support and a roller support, as shown in the figure below. Young’s modulus of the material of the beam is 200 GPa and area moment of inertia of the beam is 10−8 m4. The natural frequency of the beam in rad/s is
Correct : a
