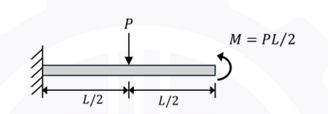

A cantilever beam of length L is subjected to a concentrated load P and a moment M as shown in the figure below. Neglecting the mass of the beam, which one of the following options is the correct representation of shear force diagram (SFD) and bending moment diagram (BMD)?

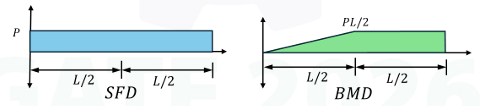

A

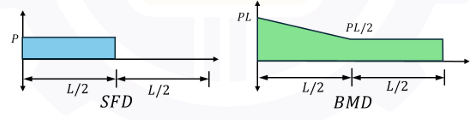

B

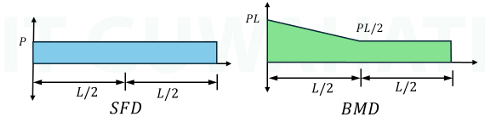

C
D
Correct : c
