Mechanical Engineering > GATE 2026 > Gears

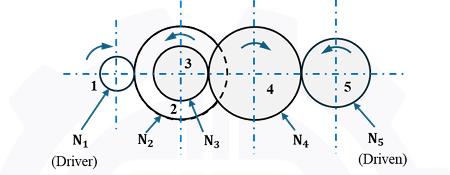

A gear train with five gears is shown in the figure below. The number of teeth on each gear is N1, N2, N3, N4, and N5. The idler gear in this gear train is
A
gear 4
B
gear 2
C
gear 3
D
gear 1

Correct : c
