Mechanical Engineering > GATE 2017 SET-2 > Kinematics of Machinery

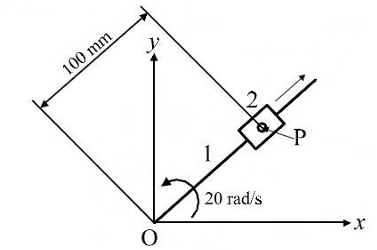

Block 2 slides outward on link 1 at a uniform velocity of 6 m/s as shown in the figure. Link 1 is rotating at a constant angular velocity of 20 radian/s counterclockwise. The magnitude of the total acceleration (in m/s2) of point P of the block with respect to fixed point O is ________.
Correct : 243.3
