Mechanical Engineering > GATE 2017 SET-1 > Riveted Joints

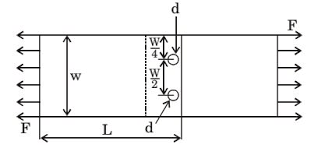

Consider the schematic of a riveted lap joint subjected to tensile load F, as shown below. Let d be the diameter of the rivets, and Sf the maximum permissible tensile stress in the plates. What should be the minimum value for the thickness of the plates to guard against tensile failure of the plates? Assume the plates to be identical.
A
F / (Sf(W-2d))
B
F / (SfW)
C
F / (Sf(W-d))
D
2F / (SfW)

Correct : a
