Mechanical Engineering > GATE 2015 SET-2 > Conduction

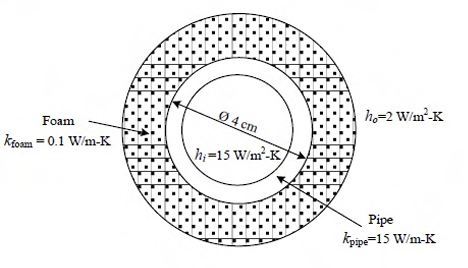

If a foam insulation is added to a 4 cm outer diameter pipe as shown in the figure, the critical radius of insulation (in cm) is ________.
Correct : 5
