Mechanical Engineering > GATE 2015 SET-1 > Riveted Joints

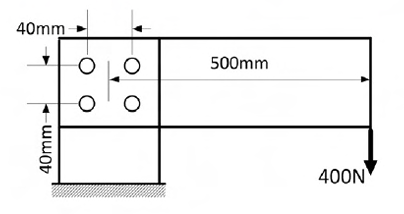

A horizontal plate has been joined to a vertical post using four rivets arranged as shown in the figure. The magnitude of the load on the worst loaded rivet (in N) is ________.
Correct : 1840
