Mechanical Engineering > GATE 2015 SET-1 > Torsion

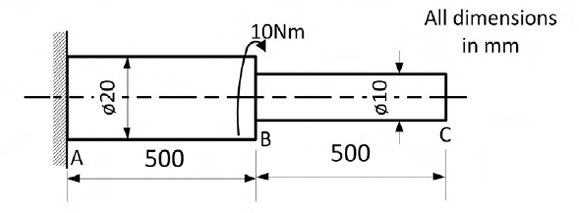

Consider a stepped shaft subjected to a twisting moment applied at B as shown in the figure. Assume shear modulus, G = 77 GPa. The angle of twist at C (in degrees) is ________.
Correct : 0.23
