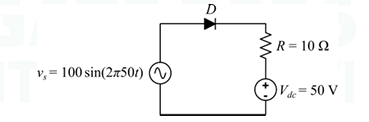

Consider the circuit shown. Assume that the diode (D) is ideal.
Given vs = 100 sin(2π50t) V, Vdc = 50 V, and R = 10 Ω, the average value of the current through the diode is ___________ A
(Round off to two decimal places)
Given vs = 100 sin(2π50t) V, Vdc = 50 V, and R = 10 Ω, the average value of the current through the diode is ___________ A
(Round off to two decimal places)
Correct : 1.09
