Electrical Engineering > GATE 2026 > Two-Port Networks

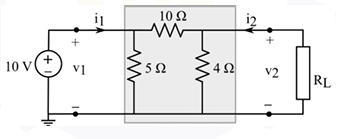

Consider the two-port network shown. For maximum power transfer to the resistive load (RL), the value of RL should be__________ Ω
(Round off to two decimal places)
Correct : 3.10
