Electrical Engineering > GATE 2026 > Protection - Current Transformers

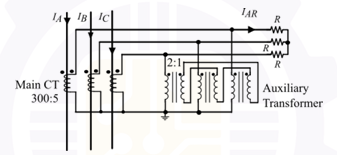

In the circuit shown, the phase currents are IA = 572.812 + j50.115 A, IB = −254.525 − j459.175 A, IC = −207.083 + j444.091 A.
Given that the CTs are ideal with no saturation, and the turns ratio of the Main CT is 300:5 and that of the Auxiliary Transformer (YnΔ) is 2:1 on every phase, the value of IAR, rounded off to three decimal places, is:
Correct : d
