Electrical Engineering > GATE 2026 > Operational Amplifiers

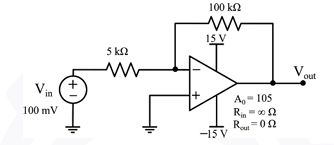

In the circuit shown, the open loop gain of the operational amplifier is A0 = 105.
What is the voltage gain of the circuit?
(Round off to two decimal places)
A
−16.67
B
−20.00
C
−21.00
D
−12.67

Correct : b
