Electrical Engineering > GATE 2026 > Bode Plot

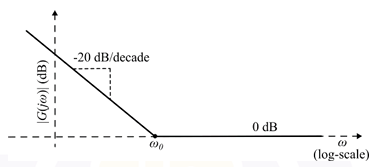

The asymptotic Bode magnitude plot of a system is shown, with a -20 dB/decade slope reaching 0 dB at ω0.
Which one of the following options best represents the transfer function of the system?
A
G(s) = (1 + s/ω0)/(s/ω0)
B
G(s) = (s/ω0)/(1 + s/ω0)
C
G(s) = (1 + s/ω0)/(1 − s/ω0)
D
G(s) = (1 − s/ω0)/(1 + s/ω0)

Correct : b
