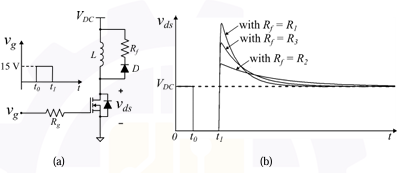

Consider the circuit shown in Figure (a). A gate pulse vg is applied between time instants t0 and t1. After t1, during the MOSFET turn OFF process, it experiences a voltage overshoot.
Based on the vds waveforms shown in Figure (b), which one of the following options is correct?
Based on the vds waveforms shown in Figure (b), which one of the following options is correct?
Correct : a
