EC > GATE 2026 > Diode Circuits

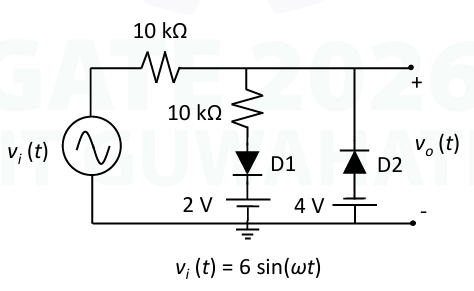

Consider the ideal diodes D1 and D2 as shown in the Figure with cut-in voltage Vγ = 0 Volt and vi(t) is in Volt.
The maximum voltage (Volt) of the output vo(t) is __.
(rounded off to two decimal places)
The maximum voltage (Volt) of the output vo(t) is __.
(rounded off to two decimal places)
Correct : 4.00
