EC > GATE 2026 > Two-Port Networks

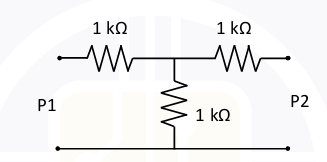

Consider the two-port network as shown in the Figure.
Which of the following options provides the correct set of values of A, B, C and D parameters?
A
A = 1/2, B = 3×103 Ω, C = 10-3 Ω-1, D = 1/2
B
A = 2, B = 3 Ω, C = 1 Ω-1, D = 2
C
A = 2, B = 6×103 Ω, C = 2×10-3 Ω-1, D = 2
D
A = 2, B = 3×103 Ω, C = 10-3 Ω-1, D = 2

Correct :
