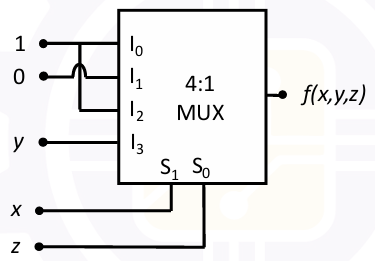

A Boolean function, f(x,y,z) with x as MSB and z as LSB is realized by 4:1 multiplexer (MUX) with select lines, S1 and S0 (S1 is MSB, S0 is LSB) and inputs, I0, I1, I2, I3 as shown in the Figure.
Which of the following options is the correct expression of f(x,y,z)?
Which of the following options is the correct expression of f(x,y,z)?
Correct :
