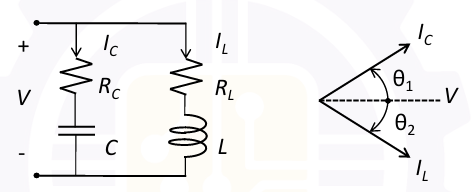

In the given circuit, L = 1 μH and C = 1 μF. The phasor diagram for IC and IL is also shown. Assume that the phase (θ1 + θ2) is 90° at a frequency of 159.15 kHz.
Among the following options, what is the nearest integer value of RC × RL?
Among the following options, what is the nearest integer value of RC × RL?
