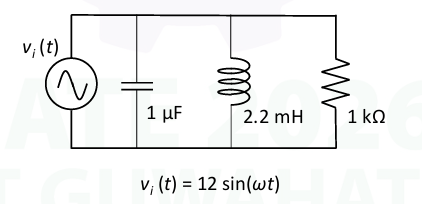

Consider the circuit shown in the Figure, where the input vi(t) is in Volt.
The average power (in mW) dissipated in the load resistance of 1 kΩ at the resonant frequency is __.
(rounded off to two decimal places)
The average power (in mW) dissipated in the load resistance of 1 kΩ at the resonant frequency is __.
(rounded off to two decimal places)
Correct :
