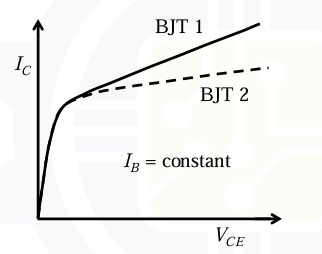

Figure shows the output characteristics of two different Bipolar Junction Transistors (BJT), BJT 1 with magnitude of Early voltage |VA1|, and BJT 2 with magnitude of Early voltage |VA2|.
Which of the following options is/are correct regarding the Early voltages?
A
|VA1| > |VA2|
B
|VA1| is infinitely large
C
|VA1| < |VA2|
D
|VA2| is finite
