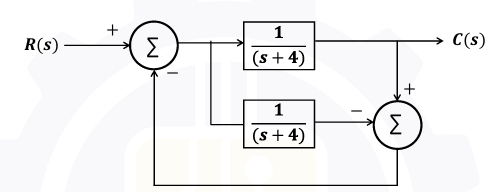

A control system is shown in the Figure.
Which option represents the correct transfer function of the system?
A
1/(s+4)2
B
1/(s+4)
C
2/(s+4)
D
1/(s2+8s+17)

Correct :
