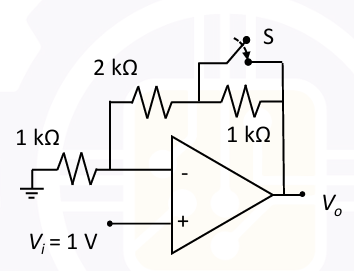

The ideal OP-AMP circuit shown in the Figure produces output voltage Vo = x when the Switch, S, is open.
Which of the options represents the output voltage when S is closed?
A
x
B
(2/3)x
C
(3/4)x
D
(1/2)x

Correct :
