EC > GATE 2017 SET-2 > Wave Propagation

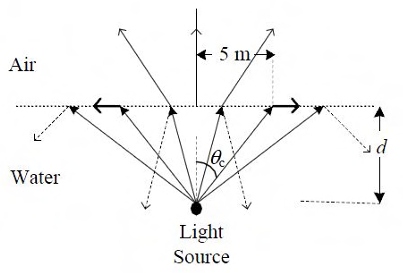

The permittivity of water at optical frequencies is 1.75ε0. It is found that an isotropic light source at a distance d under water forms an illuminated circular area of radius 5 m. as shown in the figure. The critical angle is θc.
The value of d (in meter) is
Correct : 4.24
Similar Questions
Consider a narrow band signal, propagating in a lossless dielectric medium (εr = 4, μr = 1), with phase velocity vp and group velocity vg. Which of the followin...
The distance (in meters) a wave has to propagate in a medium having a skin depth of 0.1 m so that the amplitude of the wave attenuates by 20 dB, is
Assume that a plane wave in air with an electric field E(t) = ây10 cos(ωt − 3x − √3z) V/m is incident on a non-magnetic dielectric slab of relative permittivity...
