EC > GATE 2017 SET-2 > Diode Circuits

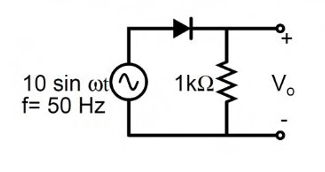

The output V0 of the diode circuit shown in the figure is connected to an averaging DC voltmeter. The reading on the DC voltmeter in Volts, neglecting the voltage drop across the diode, is _________.
Correct : 3.18
Similar Questions
In the circuit shown, the n: 1 step-down transformer and the diodes are ideal.The diodes have no voltage drop in forward biased condition.If the input voltage (...
In the circuit shown below, D1 and D2 are silicon diodes with cut-in voltage of 0.7 V. VIN and VOUT are input and output voltages in volts. The transfer charact...
All the diodes in the circuit given below are ideal.Which of the following plots is/are correct when VI (in Volts) is swept from -M to M?
