EC > GATE 2017 SET-1 > BJT Biasing

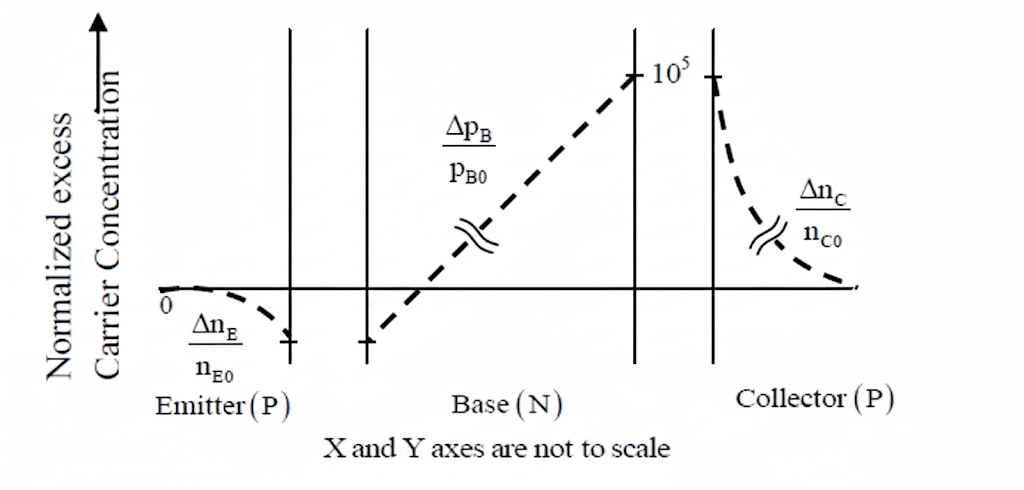

For a narrow base PNP BJT, the excess minority carrier concentrations (ΔnE for emitter. ΔpB for base. Δnc for collector) normalized to equilibrium minority carrier concentrations (nE0 for emitter, pB0 for base, nc0 for collector) in the quasi-neutral emitter, base and collector regions are shown below.
Which one of the following biasing modes is the transistor operating in?
Correct : c
Similar Questions
The ideal BJT in the circuit given below is biased in the active region with a β of 100.If IB is 10 μA, then VCE (in Volts, rounded off to two decimal p...
Consider the circuit shown in the figure. Assume base-to-emitter voltage VBE=0.8 V and common-base current gain (a) of the transistor is unity.
The value of...
In the circuit shown below, the silicon npn transistor Q has a very high value of β. The required value of R2 in kΩ to produce IC = 1 mA is
